Day 14 - Worksheet H

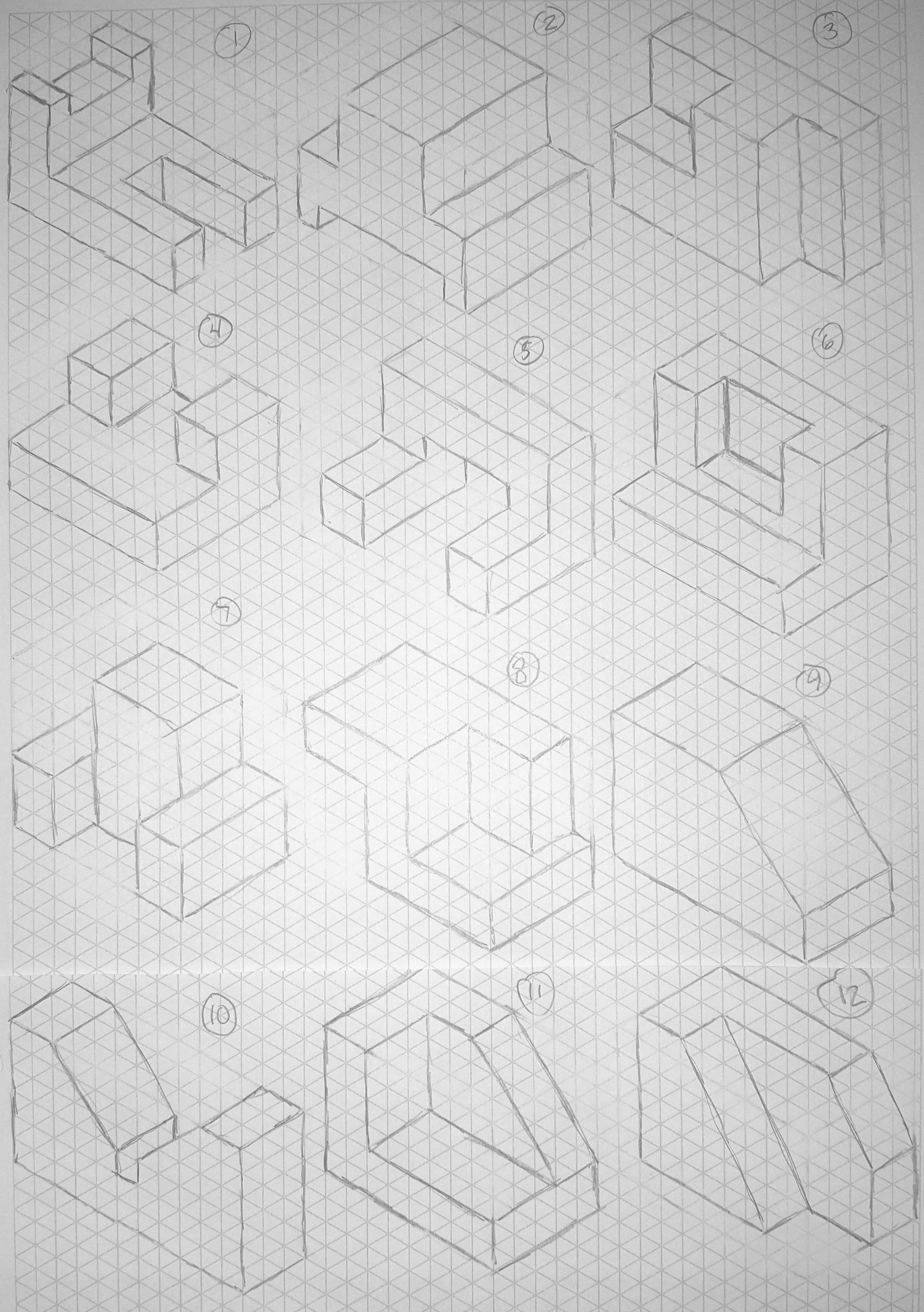

We're shifting gears today. Instead of projecting isometric shapes based on orthographic drawings, you will derive orthographic drawings based on isometric projections. Use these isometric figures as your source material and draw them out on Worksheet H, which will be provided in hardcopy for your use. You should be able to complete this assignment by the end of the bell.

Don't forget to turn in your hand drawings of Worksheet D's first 12 figures!
